  • Vibratory Plate Compactor

    Product Overview

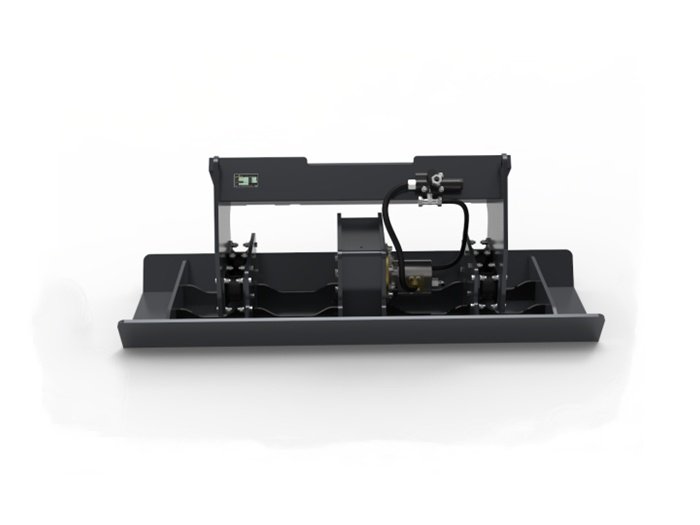

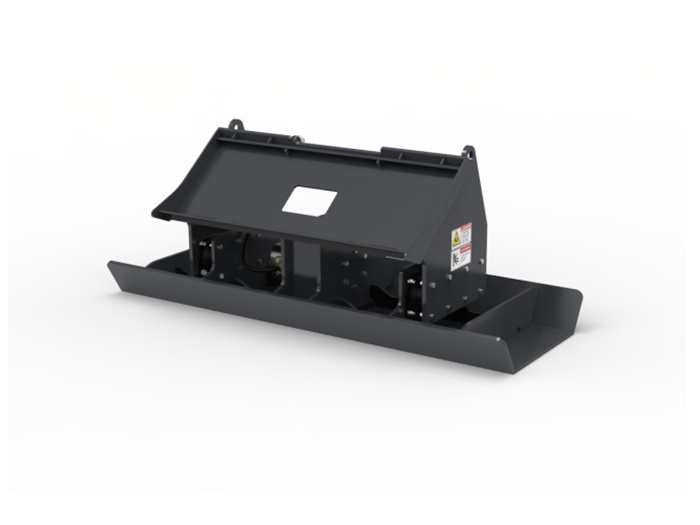

    The Skid Steer Vibratory Plate Compactor Attachment is engineered with the highest quality components.Using an eccentric, rotating weight that creates vibration and impulse energy, our skid-steer mounted vibratory plate compactor uses the same technology to provide the needed forces for effective flatwork soil compaction.

    Description

    Num
    Item Parameter
    1
    Weight

    1100 lbs

    2
    Width

    72 in

    3 Height 28 in
    4 Length 29 in
    5 Exciting force 33 kn
    6 Impulse Force 8,000 lbs
    7 Hyd Flow Required 12-21 gpm
    8 Hyd Pressure Range 2,000-2,800 psi
    9 Base Plate Dimensions 18 in x 72 in
    10 Compaction Area 9 sq ft
    11 Recommended Carrier Weight 4,000-14,000
    12 Compaction Plate 3/4 in
    13 Direction of Travel Forward | Reverse
