01  |

Grader

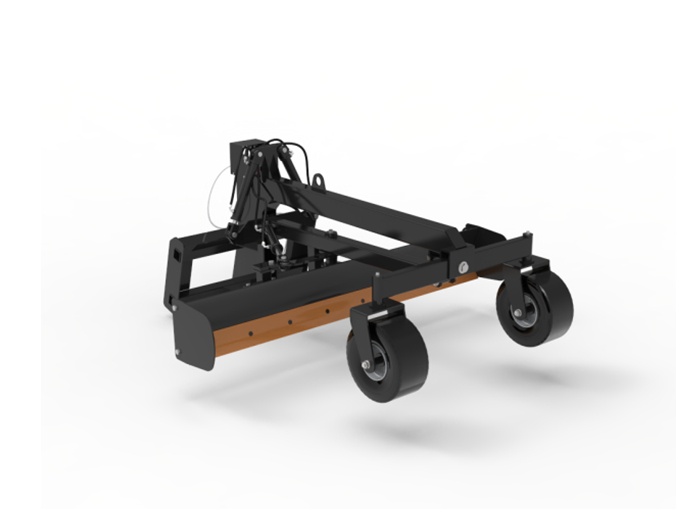

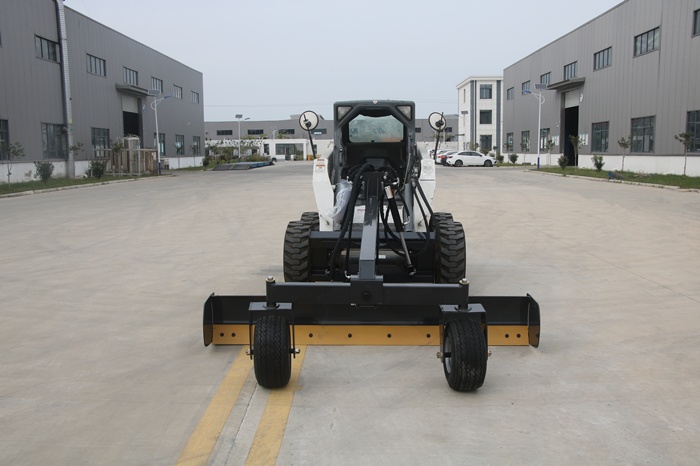

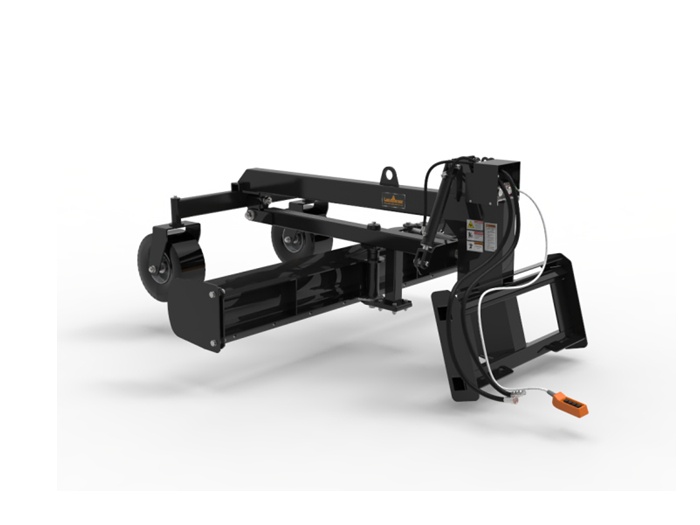

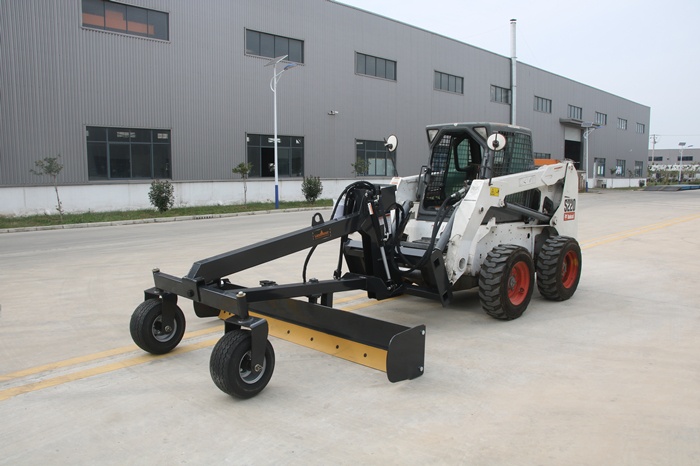

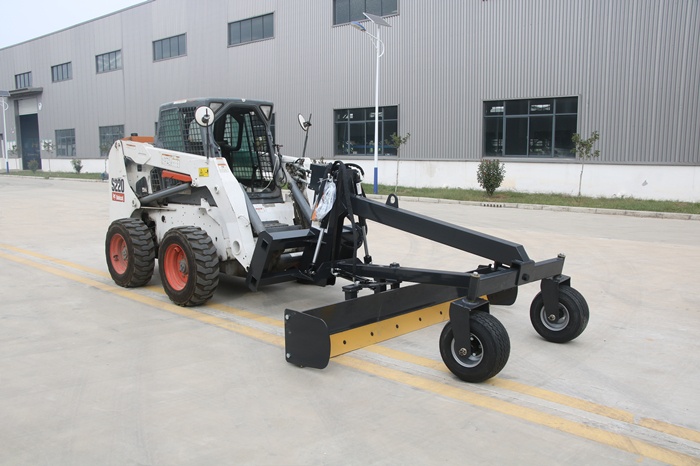

The Grader Blade attachment can turn your skid steer into a high-performance grading machine. It features a 96" wide blade, control box for in-cab hydraulic control of angle and tilt, and a replaceable cutting edge. Also features a electromagnetic valve  to gradually adjust the blade height, angle and tilt.

SKU: GM-12-96W

CONTACT US

The Grader Blade attachment can turn your skid steer into a high-performance grading machine. It features a 96" wide blade, control box for in-cab hydraulic control of angle and tilt, and a replaceable cutting edge. Also features a electromagnetic valve  to gradually adjust the blade height, angle and tilt. It is ready to accept a laser control system for perfect grading. Use the optional laser system with an our grader for a perfect grade every time! The transmitter features +/-15% X axis grade range, 0.5% to +25% Y axis grade range and high accuracy up to 3,000 ft. The receiver features bright green "on-grade" indicators and red "off-grade" indicators, and simple, one cable attachment.

Num
Item Parameter
1
Weight

740 lbs

2
Pack Size/unit L*W*H

98*98*46 in

3 Bolt On Cutting Edge Optional
4 Moldboard Width 95.5 in
5 Moldboard Height 15 in
6 Moldboard Rotation Left & Right ±25°
7 Moldboard Tilt Up or Down ±25°
8 Hydraulic Blade Adjustments Tilt / Angle / Height
9 Grader Control Valve Electric Solenoid Operated
