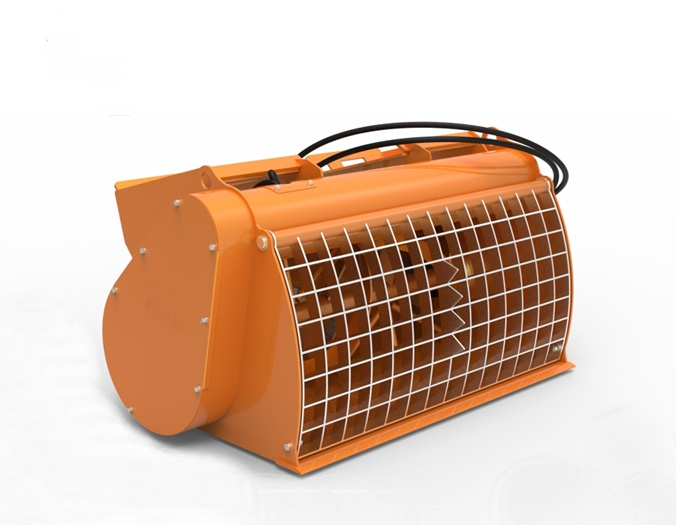

Double Discharge Concrete Mixer

The Double Discharge Concrete Mixer is a heavy duty skid steer mounted concrete mixer that allows you to scoop up the material, mix it on the go and then dispense the material in different methods. A manual side chute allows the operator to efficiently dispense the concrete from the side of the attachment.

SKU:

CONTACT US

The Double Discharge Concrete Mixer is a heavy duty skid steer mounted concrete mixer that allows you to scoop up the material, mix it on the go and then dispense the material in different methods. A manual side chute allows the operator to efficiently dispense the concrete from the side of the attachment. It also has a hydraulically operated center chute with a dispenser hose that gives the operator even more flexibility to place the material anywhere. The center chute not only lets you dispense concrete but it also works as a sand bag filler. You can also just pour the finished batch out the front of the mixer in one big pour.

Num
Item Parameter
1
Weight

765 lbs.

2
Flow Range

11 - 22 gpm

3 Max Pressure 2900 PSI
4 Hoses 3/8" - 3500 PSI
5 Volume 66  Gallons/250 L
6 Drive Base Chain and Sprocket Drive
7 Height 32"
8 Width of Hopper 58 "
9 Depth 26 in
10 Max Aggregate Size 1.25" Diameter
