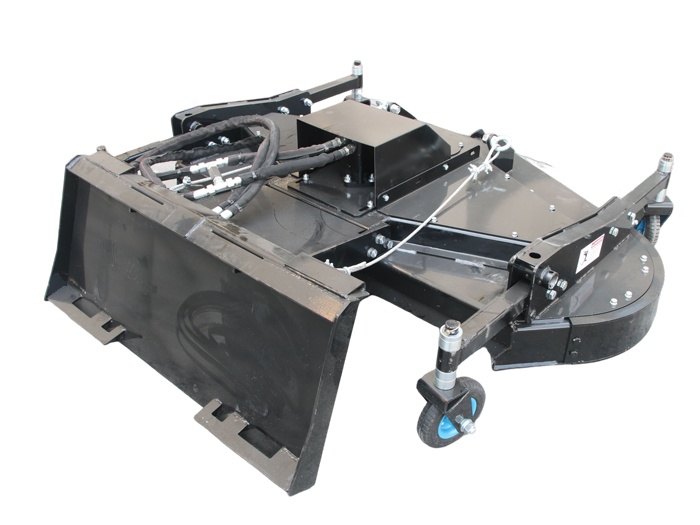

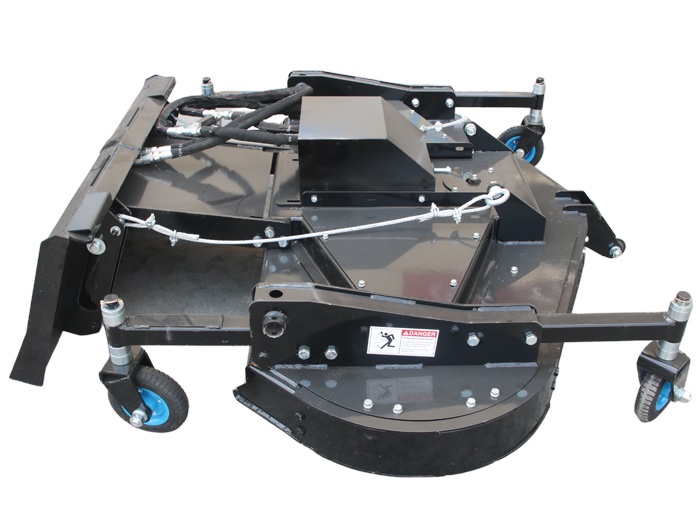

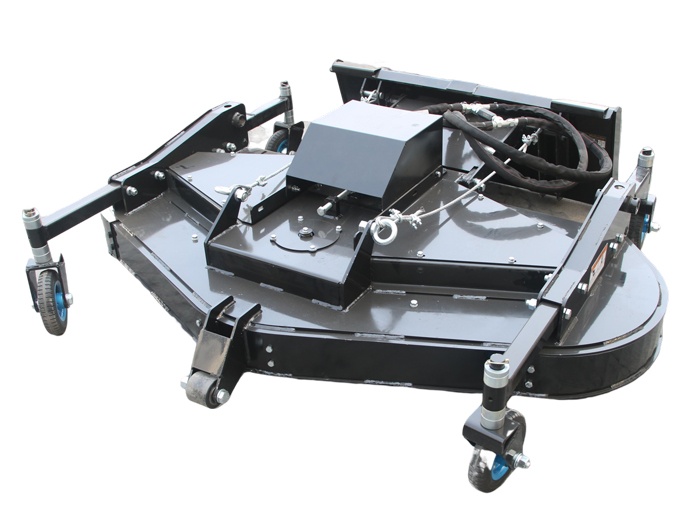

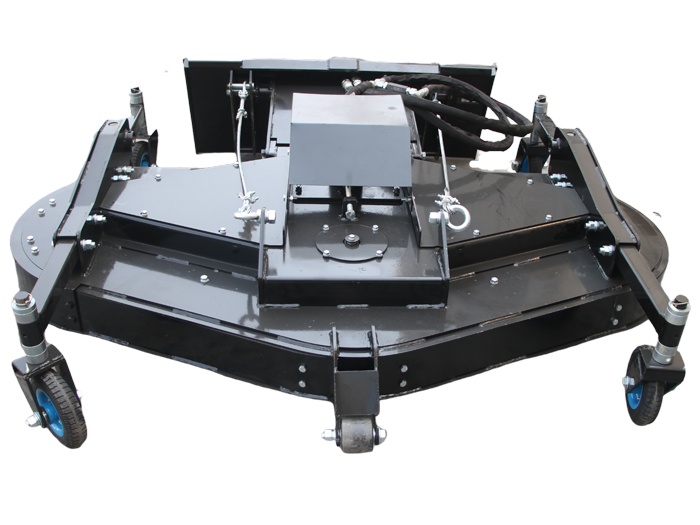

3 Blades Mower
From mowing roadside ditches to large acreages, the 3 blades mower attachment is ideal for all mowing.The front-mounted unit cuts grass before it’s driven over, allowing excellent working visibility of the area to be mowed. Powered by a direct-drive hydraulic motor, three overlapping blades eliminate skips for clean cutting action, discharging cut materials to the rear. And the unique frame design allows the mower to oscillate independently to follow uneven terrain, delivering a close, clean cut.
SKU: TBM-12-78W
From mowing roadside ditches to large acreages, the 3 blades mower attachment is ideal for all mowing.The front-mounted unit cuts grass before it’s driven over, allowing excellent working visibility of the area to be mowed. Powered by a direct-drive hydraulic motor, three overlapping blades eliminate skips for clean cutting action, discharging cut materials to the rear. And the unique frame design allows the mower to oscillate independently to follow uneven terrain, delivering a close, clean cut.
| Num | Item | Parameter |
| 1 | Weight | 950 lbs |
| 2 | Overall Height | 19 in |
| 3 | Overall width | 78 in |
| 4 | Overall Length | 68 in |
| 5 | Cutting Width:72 in | 72 in |
| 6 | Cutting Height Range | 2" to 5.5" adjustable in 1/2" increments |
| 7 | Number of Blades | 3 |
| 8 | Tip Speed @ 22 gpm | 17555 ft/min |
