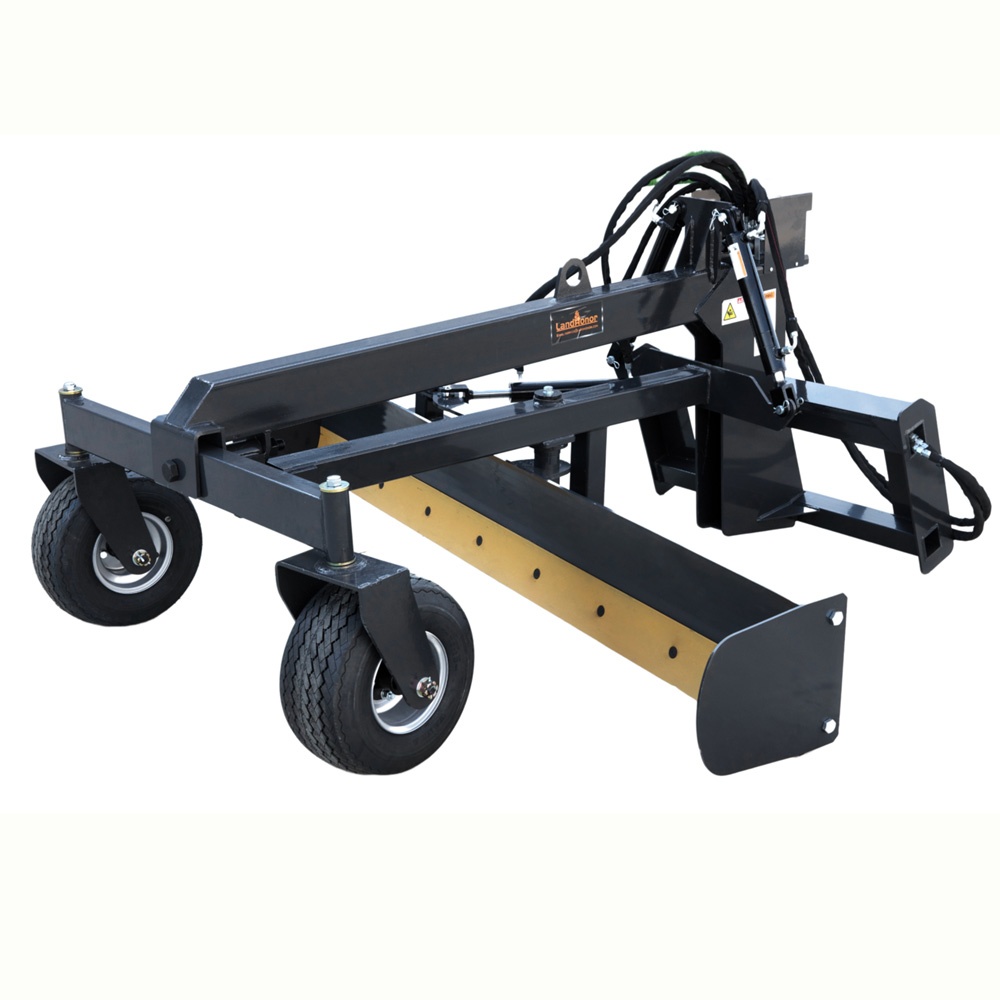

The Grader Blade attachment can turn your skid steer into a high-performance grading machine. It features a 96" wide blade, control box for in-cab hydraulic control of angle and tilt, and a replaceable cutting edge.
Also features a electromagnetic valve to gradually adjust the blade height, angle and tilt.
It is ready to accept a laser control system for perfect grading.
Use the optional laser system with an our grader for a perfect grade every time!
The transmitter features +/-15% X axis grade range, 0.5% to +25% Y axis grade range and high accuracy up to 3,000 ft.
The receiver features bright green "on-grade" indicators and red "off-grade" indicators, and simple, one cable attachment.
SKU:GM-12-96W
Specs:2480*2471*1179mm
Width:96 in
Overall Length:101 in
Overall Height:46.5 in
Hydraulic Blade Adjustments:Tilt / Angle / Height
Rotation Left & Right:25°
Tilt Up or Down: 15°
Grader Control Valve:Electric Solenoid Operated
Operating Weight:1195 lbs
