01  |

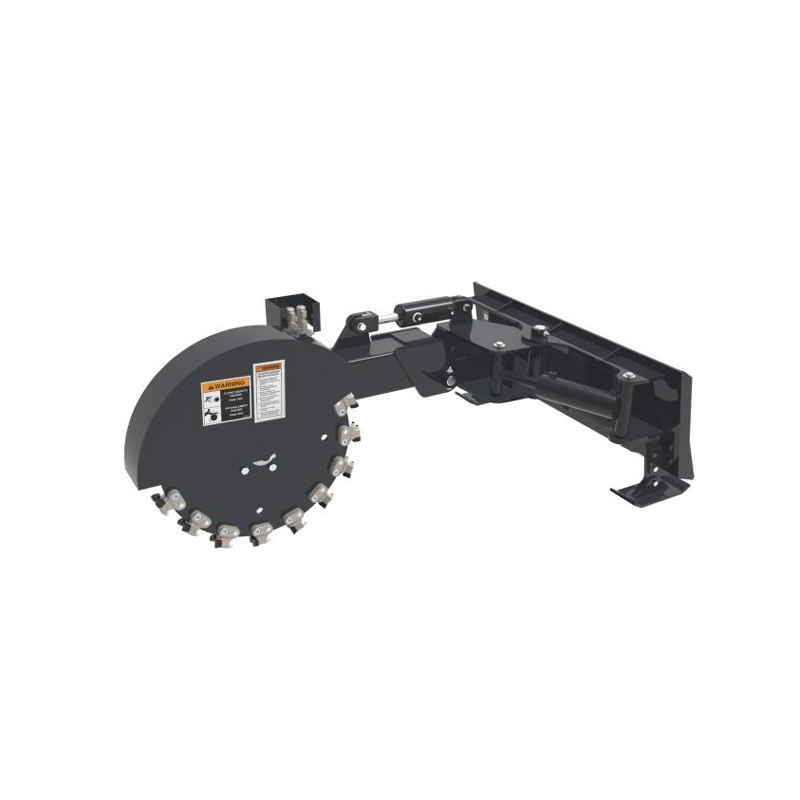

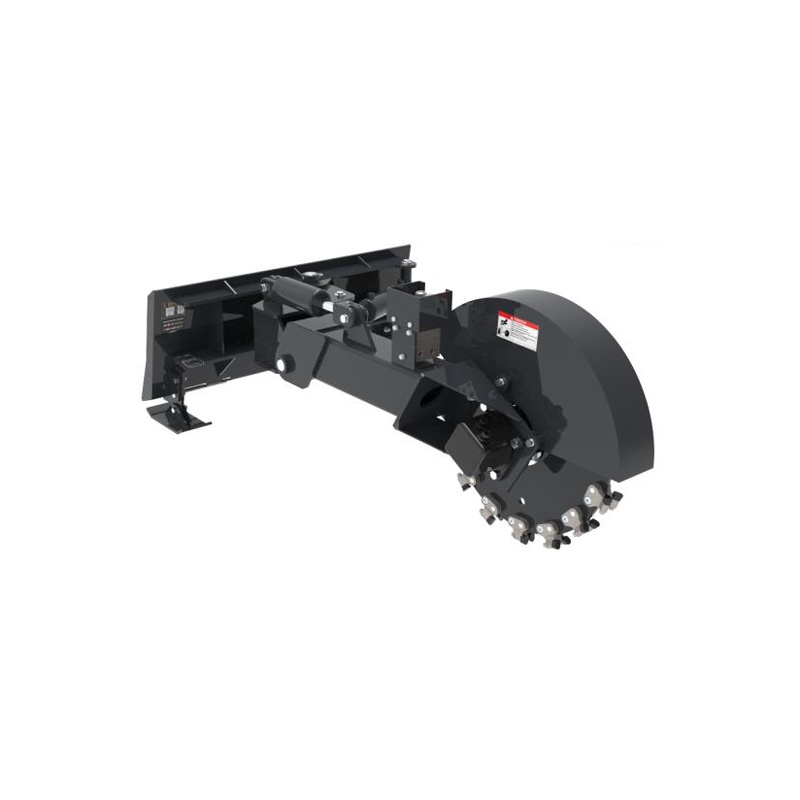

STUMP GRINDER

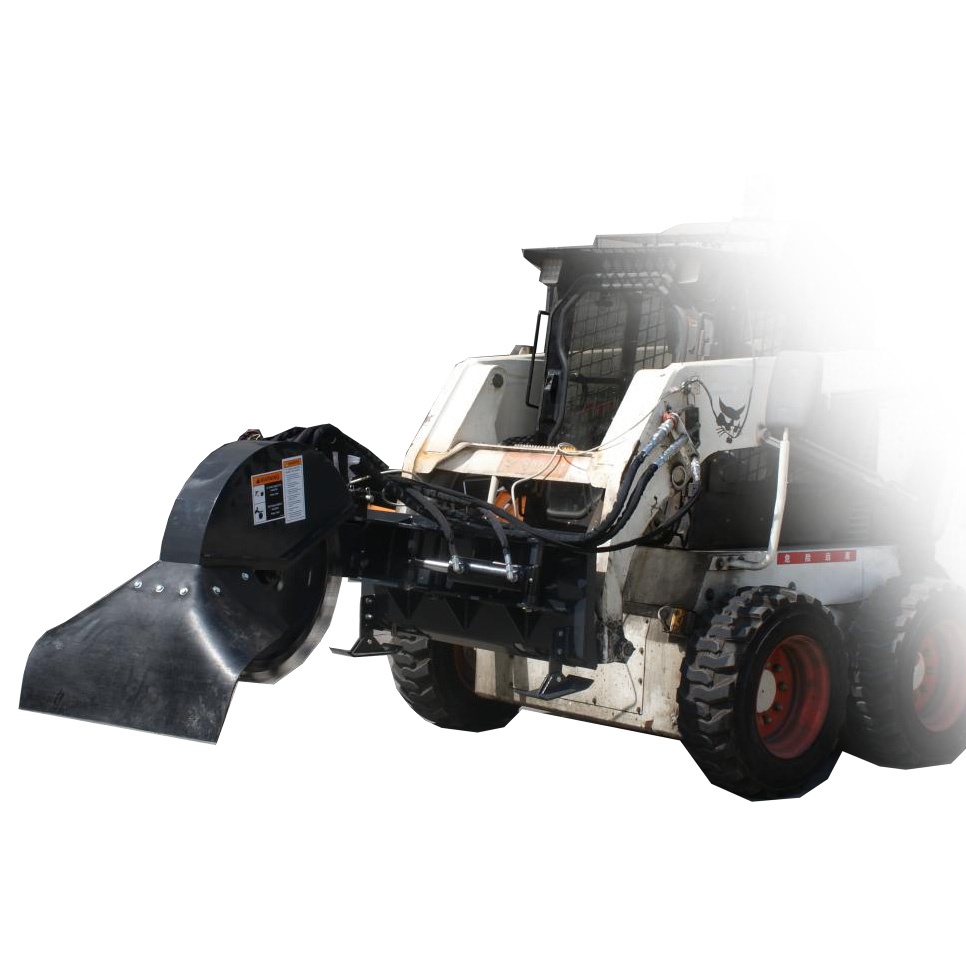

Our Professional Series Stump Grinder is the choice for arborists, large contractors, landscapers, and maintenance departments. Mounted on a most any brand of skid steer or compact track loader these units are easy to maneuver into compact areas that are difficult or impossible to reach with other types of machines without creating unnecessary damage to property. Ultra strong tungsten carbide teeth aggressively chew through any size stump.

SKU: SG-13-08D

Get a Free Qoute

Our Professional Series Stump Grinder is the choice for arborists, large contractors, landscapers, and maintenance departments. Mounted on a most any brand of skid steer or compact track loader these units are easy to maneuver into compact areas that are difficult or impossible to reach with other types of machines without creating unnecessary damage to property. Ultra strong tungsten carbide teeth aggressively chew through any size stump. Unique bi-directional cutting design creates a more aggressive cutting pattern that takes out even the largest of stumps in no time. Offset cutting wheel allows the operator great visibility. The hydraulic motor powers the 1/2" cutting wheel to an impressive 1,100 rpm, that along with the large 24" diameter cutting wheel and 55 degree swath cuts 8" deep in as little as 2 minutes. It features the ideal combination of maneuverability, power, durability, and simplicity.

Item Parameter Remark
Model 72" -
- Inch Parameter Metric Parameter -
Total Weight 650 lbs 295 Kg -
Working Pressure 3000 psi 21 Mpa -
Overall Width W 45.2 " 1150 mm -
Height H 30" 760 mm -
Length L 75.7" 1924 mm -
Number of Blades 32 PCS Left:14pcs,Right:14pcs,Straight:4pcs
Max. Diameter of Stump 35" 889 mm -
Max. Angle of Swing 55° Horizontal Direction
Max. Angle of Tilt 25° Vertical Direction
Model of Motor BM4W-160 Flow Rate:125L/min,Rotate Speed:240r/min,Power:10Kw
Model of Hydraulic Control Valve ZW191228002 Cartridge Valve,12V
Swing Cylinder 3"x6" Diameter:76" Distance:152"
Tilt Cylinder 3"x4" Diameter:76" Distance:101"
Suitable Loader Skid Steer Loader -
